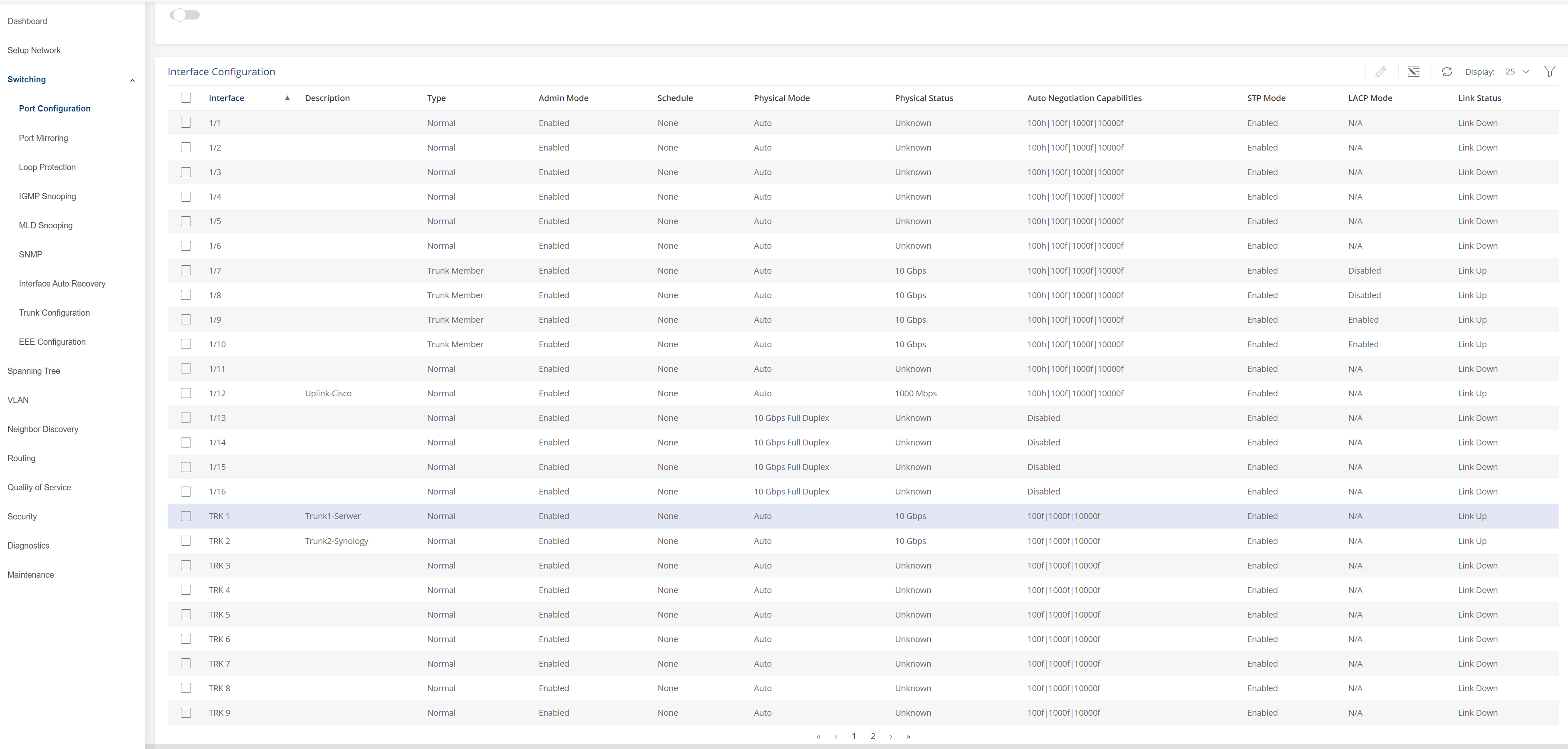

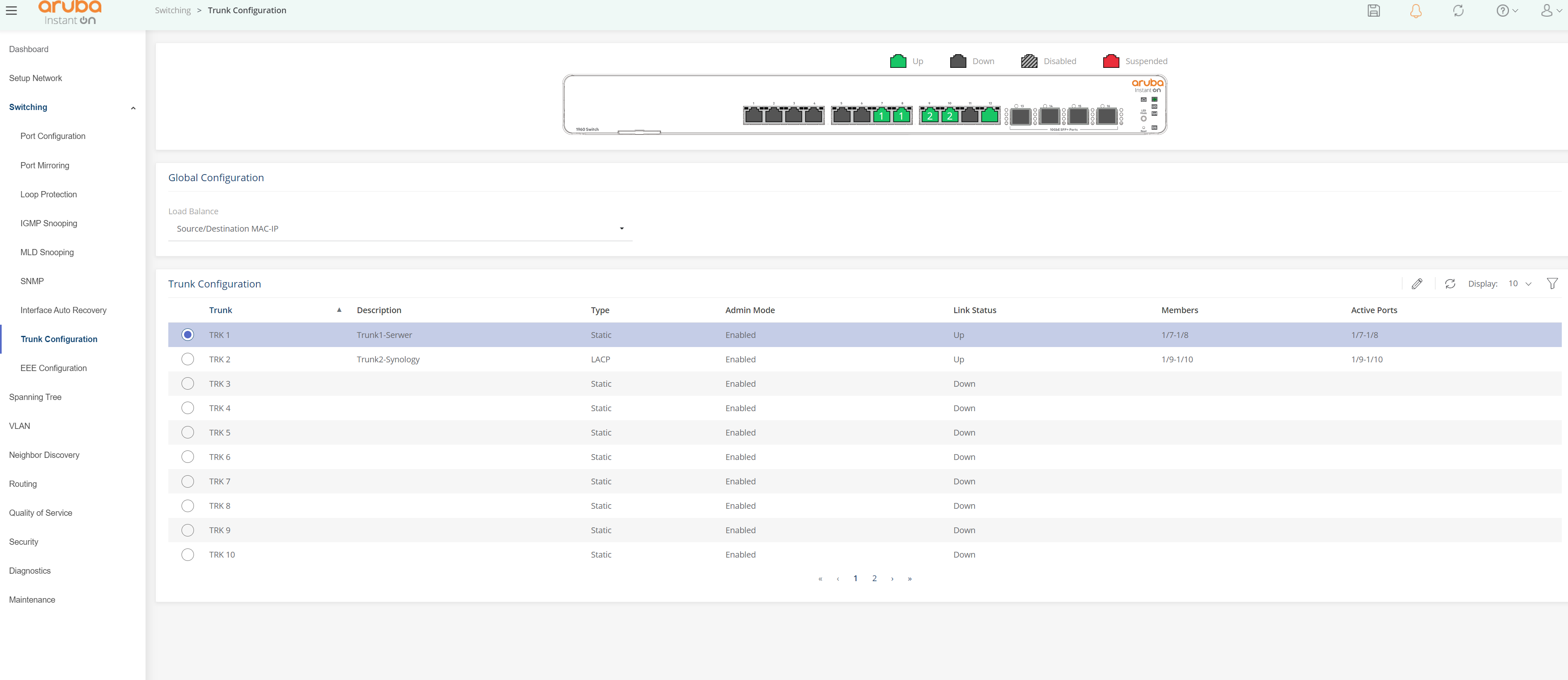

Hi, I want to bond two pairs of 10Gbps ports to create 20Gbps bandwidth. So I have two 10G ports connected to my NAS and another two 10G ports connected to my server. I created two trunks, one in static mode for the server and another in LACP mode for the NAS. But still, in the Port Configuration interface, it shows only 10Gbps on the trunk connection. What do I do wrong, or is it even possible to create such a bond?

Well it is to do with the connected device, you must make sure they support LACP IEEE 802.3ad, and setup acordently

The lacp in your switch work.

Original Message:
Sent: 12-19-2023 05:54 AM
From: Kuba
Subject: Link Aggregation Configuration to achive 20Gbps

Hi, I want to bond two pairs of 10Gbps ports to create 20Gbps bandwidth. So I have two 10G ports connected to my NAS and another two 10G ports connected to my server. I created two trunks, one in static mode for the server and another in LACP mode for the NAS. But still, in the Port Configuration interface, it shows only 10Gbps on the trunk connection. What do I do wrong, or is it even possible to create such a bond?

------------------------------
Kuba Stepnowski
------------------------------
